Budżetowy, czteropasmowy procesor emisyjny z wejściami i wyjściami analogowymi oraz podwójnym wyjściem MPX.
- Oparty o DSP o niskiej latencji
- Szerokopasmowe AGC
- Limiter
- 4-pasmowy procesor dynamiczny
- Wejścia analogowe (symetryczne) i cyfrowe (AES/EBU, SPDIF i optyczne)
- Wyjścia o regulowanej głośności analogowe (symetryczne) i cyfrowe
- Dwa niezależne wyjścia kompozytowe MPX
- Zintegrowany koder stereo z kontrolą peaków
- Wbudowany serwer do zarządzania przez przeglądarkę www
- Oprogramowanie do zdalnego sterowania dowolnym komputerem z Windows®
- Wbudowany koder RDS/RBDS

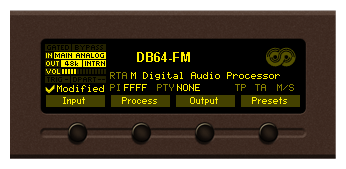

- Jasny, czytelny wyświetlacz OLED, mierniki LED
- Łatwy dostęp do ustawień z panela czołowego
- Wyjście słuchawkowe na panelu czołowym
- Inteligentny detektor ciszy
- Funkcja przełączania na źródło zapasowe w razie utraty źródła podstawowego
- Tryb testowy oraz bypass
- Zarządzanie poprzez SNMP
- Synchronizacja wewnętrznego zegara protokołem SNTP
- Powiadomienia o zmianach presetów e-mailem lub SNMP
- Porty Ethernet i USB
- Obudowa rackowa 1U
| Analog Audio Input | |
| Connectors | Main – Two XLR, EMI suppressed, electronically balanced; Auxiliary – DB9, EMI suppressed, electronically balanced |
| Configuration | Stereo |
| Input level (0 dBFS) | Software selectable -8 dBu to +24 dBu peak |
| Impedance | Jumper selectable 600Ω / >10kΩ |
| A/D Conversion | 24 bit; 48 kHz sample rate; Differential inputs |
| Analog Audio Output | |
| Connectors | Two XLR, EMI suppressed, electronically balanced |
| Configuration | Stereo. Software selectable flat, pre-emphasized or de-emphasized |
| Output Level( 0 dBFS) | Software selectable -12 dBu to +24 dBu peak into >= 600Ω load |
| Source Impedance | 20Ω |
| Load Impedance | >= 600Ω, balanced/unbalanced |
| Signal-to-Noise | >= 110 dB unweighted (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to +12 dBu output level) |
| Distortion | <= 0.01 THDN (Bypass mode, digital input, flat, 20Hz-15kHz bandwidth, referenced to +12 dBu output level) |
| D/A Conversion | 24 bit; 192 kHz sample rate; Differential outputs |
| Digital Audio Input | |
| Connectors | Main – XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance; Auxiliary – DB9, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, up to 24 bit resolution |
| Sampling Rate | 22 kHz to 192 kHz |
| Input Gain | -20 dB to 20 dB, referenced to 0 dBFS, software selectable |
| Digital Audio Output | |
| Connector | XLR, EMI suppressed, transformer balanced and floating; 110Ω impedance |
| Configuration | Stereo AES3 standard, 24 bit resolution. Software selectable flat, pre-emphasized or de-emphasized |
| Sample Rate | Internal – 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz. Externally synced to Main AES3 digital input at 32 to 192 kHz. Software selectable. |
| Word Length | 24 bit |
| Output Reference Level | -20 to 0 dBFS software selectable |
| Composite Baseband Output | |
| Connectors | BNC unbalanced, chasis floating, EMI suppressed |
| Configuration | Two outputs. Independent level control. MPX+MPX, MPX+PILOT or BYPASS mode |
| Source impedance | 75Ω |
| Load impedance | 50Ω or greater |
| Output level | -18dBu to +18dBu |
| Pilot level | 0% to 15% |
| D/A conversion | 24 bit, differential |
| SNR | >80 dB (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| THD | < 0.01% (Bypass mode, flat, 20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted) |
| Stereo Separation | >60dB |
| Crosstalk | >70dB |
| Pilot protection | >90dB relative to 9% pilot injection, ±250 Hz |
| 38 kHz suppression | >80dB (referenced to 100% modulation) |
| Remote Access Interface | |
| Configuration | TCP/IP via USB or Ethernet interface |
| USB Connector | USB type B connector |
| Ethernet Connector | Female RJ45 shielded connector for 10/100 Mbps CAT5 ethernet networks |
| Remote Control Interface (GPI) | |
| Connector | DB-9 male |
| Configuration | Eight LED optocoupler, current limited cathode inputs. Anodes are connected to VCC internally. |
| Control | Selects corresponding user preset if connected to GND |
| Power | |
| Voltage | 100-240 VAC, 50-60 Hz, 30VA |
| Connector | IEC, Fused and EMI-suppressed. Detachable 3-wire power cord supplied |
| Environmental | |
| Operating Temperature | 0° to 50°C / 32° to 122°F |
| Humidity | 0-95% RH, non-condensing |
| Size and Weight | |
| Dimensions (W;H;D) | 483 x 44 x 180 mm / 19 x 1.875 x 7” |
| Shipping Weight | 540 x 115 x 300 mm / 2.6kg |
Urządzenie z tyłu
Panel sterowania
Interfejs WEB
